L-Type Manufacturers

  • Angular Lift 60 Brushless Motor

    Angular Lift 60 Brushless Motor

    The Angular Lift 60 Brushless Motor is a brushless L-Type gear motor designed for compact equipment layouts. Its L-shaped configuration allows directi...

  • Curved Flow 80 Brushless Motor

    Curved Flow 80 Brushless Motor

    The Curved Flow 80 Brushless Motor features a brushless L-Type design that allows directional power transfer in compact equipment layouts. Its structu...

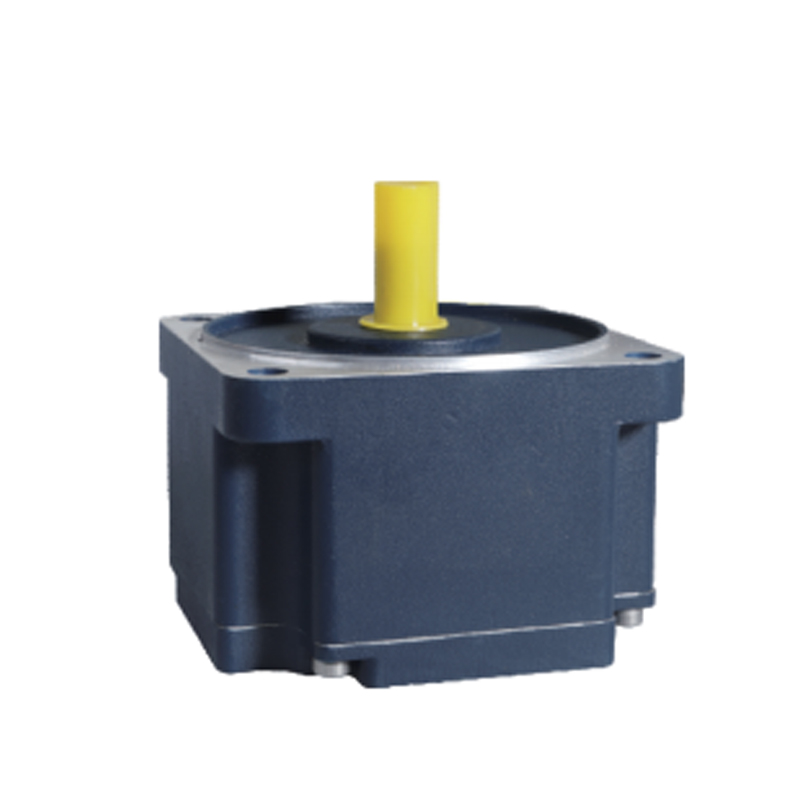

  • Rotating Shaft 100 Brushless Motor

    Rotating Shaft 100 Brushless Motor

    TheRotating Shaft 100 Brushless Motor provides a brushless L-Type gear solution for compact equipment layouts. Its design enables direct directional p...

At our company, we design L-Type DC Brushless Gear Motors for applications that require compact layouts and directional power transmission. The L-type structure allows the motor to meet turning requirements directly within the drive system, helping simplify equipment structure and improve space utilization. This design supports efficient integration into space-sensitive equipment while maintaining smooth and controlled operation.
1、Advantages: Strong spatial adaptability, suitable for compact designs; directly meets the "turning" power requirements of the equipment, simplifying the overall structure; operating noise is lower than conventional gear transmission models.
2、Applications: Warehousing and logistics; small engineering equipment; light industrial machinery

About ZHANPENG

Ruian Zhanpeng Machinery Co., Ltd. was founded in 2010 and is a comprehensive enterprise that integrates research and development, production, sales, and after-sales service of printing equipment. The factory covers an area of nearly 50000 square meters and specializes in producing various types of flexographic printing machines, including stacked flexographic printing machines, CI flexographic printing machines, fully servo high-speed flexographic printing machines, etc. It can also customize printing equipment and supporting equipment according to customer needs. It is a high-tech enterprise with more than ten years of experience in the professional manufacturing of printing machines.

Our company has strong financial and technical strength and complete processing equipment. While absorbing advanced technology from both domestic and foreign sources, we continuously develop new types of product equipment in combination with market demand, which are widely used in the production of Paper, PE, PP, BOPP, PVC, Non woven fabric, and composite materials. Due to its high degree of automation, excellent quality and low price, the equipment is popular among well-known domestic enterprises and exported to various regions such as the Americas, the Middle East, Africa, Southeast Asia, and Europe. It has also gained the trust and support of many customers.

After years of hard work and development, the company has a group of high-quality professional talents and a high-quality service team. In the future, we will continue to adhere to the business philosophy of "quality first, customer first, promoting business with quality, and winning with excellence", and strive tirelessly to provide our customers with high-quality products and professional services. Zhanpeng Machinery is dedicated to working together with people from home and abroad to create development and achieve win-win results!

Ruian Zhanpeng Machinery Co., Ltd.

We’re a reliable partner that shapes our expertise into success for your project.

Certificate Of Honor

News
Industry knowledge

The L‑Type DC Brushless Gear Motor is a compact motion component that combines a brushless DC motor with an integrated gear reduction unit. The right‑angle design positions the output shaft perpendicular to the motor shaft, allowing machines to fit power transmission into limited spaces without additional components. This configuration is common in industrial and commercial equipment where directional power delivery and compact installation are required.

Brushless DC motors do not use mechanical brushes, which reduces maintenance needs. The gear reduction section lowers the output speed while increasing torque, enabling precise control over mechanical motion. L‑Type configurations are widely used where equipment requires a change in rotation direction or when space constraints prevent inline motor alignment.

Key Features

The main features of a L‑Type DC Brushless Gear Motor include:

  • Right-Angle Output: Changes the direction of rotation by 90 degrees, suitable for equipment requiring directional motion.
  • Integrated Motor and Gearbox: Reduces assembly complexity by combining the motor and gearbox in one housing.
  • Noise Control: Gear mesh and brushless motor operation generate moderate noise, suitable for environments where audible operation is considered.
  • Space Adaptability: Compact design fits into constrained layouts without affecting performance.
Feature Description
Motor Type Brushless DC motor with electronic commutation
Output Configuration Right-angle output shaft
Speed Reduction Integrated gearbox provides reduction ratio
Mechanical Interface Mounting flanges and output shafts for machine integration
Control Interface DC input terminals for motor controller
Noise Sound generated by gear mesh and motor operation

Applications

L‑Type DC Brushless Gear Motors are suitable for equipment with specific space and motion requirements. Common applications include:

  • Warehousing and Logistics Systems: Conveyor segments, automated carts, and sorting devices.
  • Small Engineering Equipment: Machines with limited space around motion axes where right-angle output simplifies assembly.
  • Light Industrial Machinery: Manufacturing, packaging, and auxiliary equipment requiring integrated power transmission.

Design Considerations

When selecting a L‑Type DC Brushless Gear Motor, engineers consider the following:

  • Voltage and Current Requirements: The electrical input must match the supply and controller specifications.
  • Gear Ratio: Determines the trade-off between speed and torque at the output shaft.
  • Mounting and Footprint: The motor housing and right-angle output must align with adjacent machine components.
  • Control Integration: Encoders or sensors may be used for speed and position monitoring.

Summary

A L‑Type DC Brushless Gear Motor integrates electrical drive and mechanical reduction in a right-angle configuration. Its design supports compact installations, directional power transmission, and applications across warehousing, engineering equipment, and light industrial machinery.
