Provides frame size specifications for compact motor selection.

Shows detailed dimensions for light load miniature frame models.

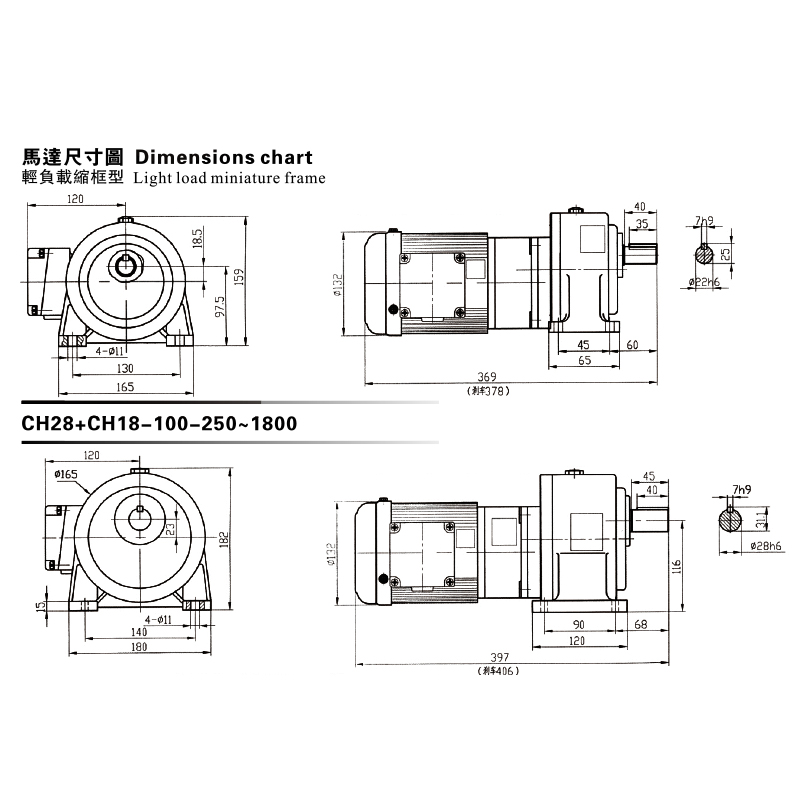

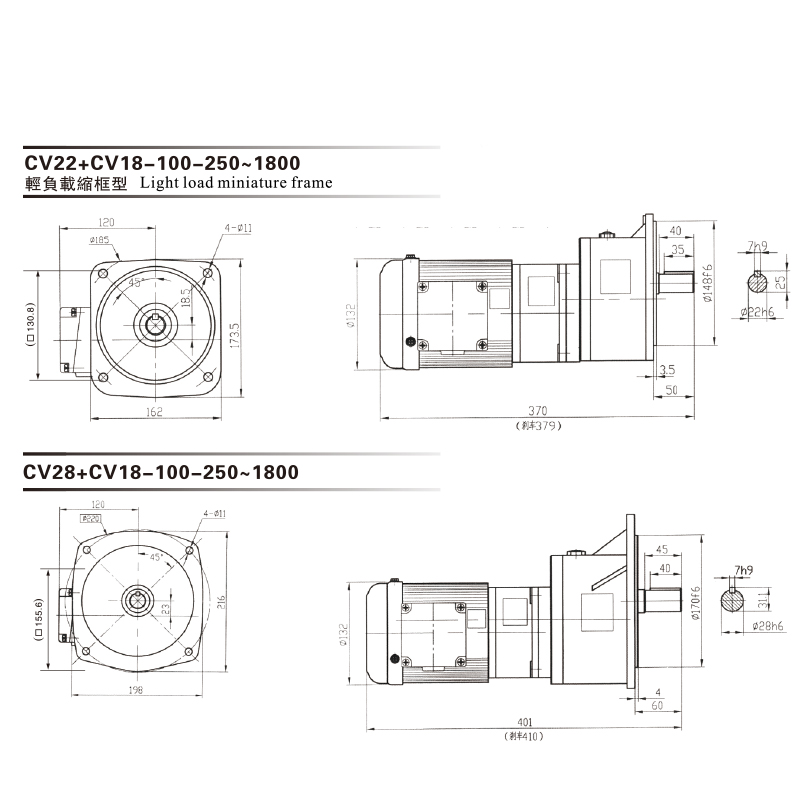

CH/CV Dimensions Chart

This CH, CV Dimensions Chart showcases a premium Gear Reduced Electric Motor series engineered for light-load, miniature frame applications. The chart outlines precise technical specifications for both CH (horizontal) and CV (vertical) flange-mounted configurations, including CH22/CV22 (22mm shaft) and CH28/CV28 (28mm shaft) models. Powered by a reliable three-phase AC motor, the series offers versatile reduction ratios ranging from 1:100 to 1:1800 for optimal speed control. Featuring a compact footprint and standardized mounting hole dimensions, these motors ensure seamless integration into conveyor belts, packaging systems, and industrial automation machinery.

Get A Quote

PREV：CH/CV Product Structure Drawing NEXT：CH/CV Combined Three-Phase Aluminum(Brake)Motor Speed Reducer

Parameter
Contact Us

CH, CV Dimensions Chart - Key Parameters:

Product Type: Light load miniature frame Gear Reduced Electric Motor (CH Horizontal / CV Vertical).

Available Models: 22 Type (22mm output shaft) & 28 Type (28mm output shaft).

Reduction Ratio Range: Versatile options from 1:100 up to 1:1800.

Motor Housing Diameter: Standard Φ 132mm for all featured models.

Output Shaft Specifications:

22 Type: Φ 22h6 shaft with 7h9 key (25mm height).

28 Type: Φ 28h6 shaft with 7h9 key (31.1mm height).

Total Body Length:

CV22 (370mm) / CH22 (369mm)

CV28 (401mm) / CH28 (397mm)

Mounting Holes: Standardized 4 - Φ 11mm holes for both horizontal base and vertical flange mounting.
